Develon Crawler Excavators

Max. Operating weight 97.000 ~ 99.500 kg

Max. Engine power 469 kW (629 HP) @ 2000 rpm

Max. Bucket capacity 5.4 ~ 6.8 m³

Main pumps max flow 3 × 523 l/min

Get the most out of your working day with Crawler Excavators. Providing durability and high quality, these machines increase your operation rate and asset value, leading to ultimate satisfaction.

Model	Engine	Operating weight (kg)	Engine power	Bucket capacity (m³)	Main pumps max. flow (l/min)

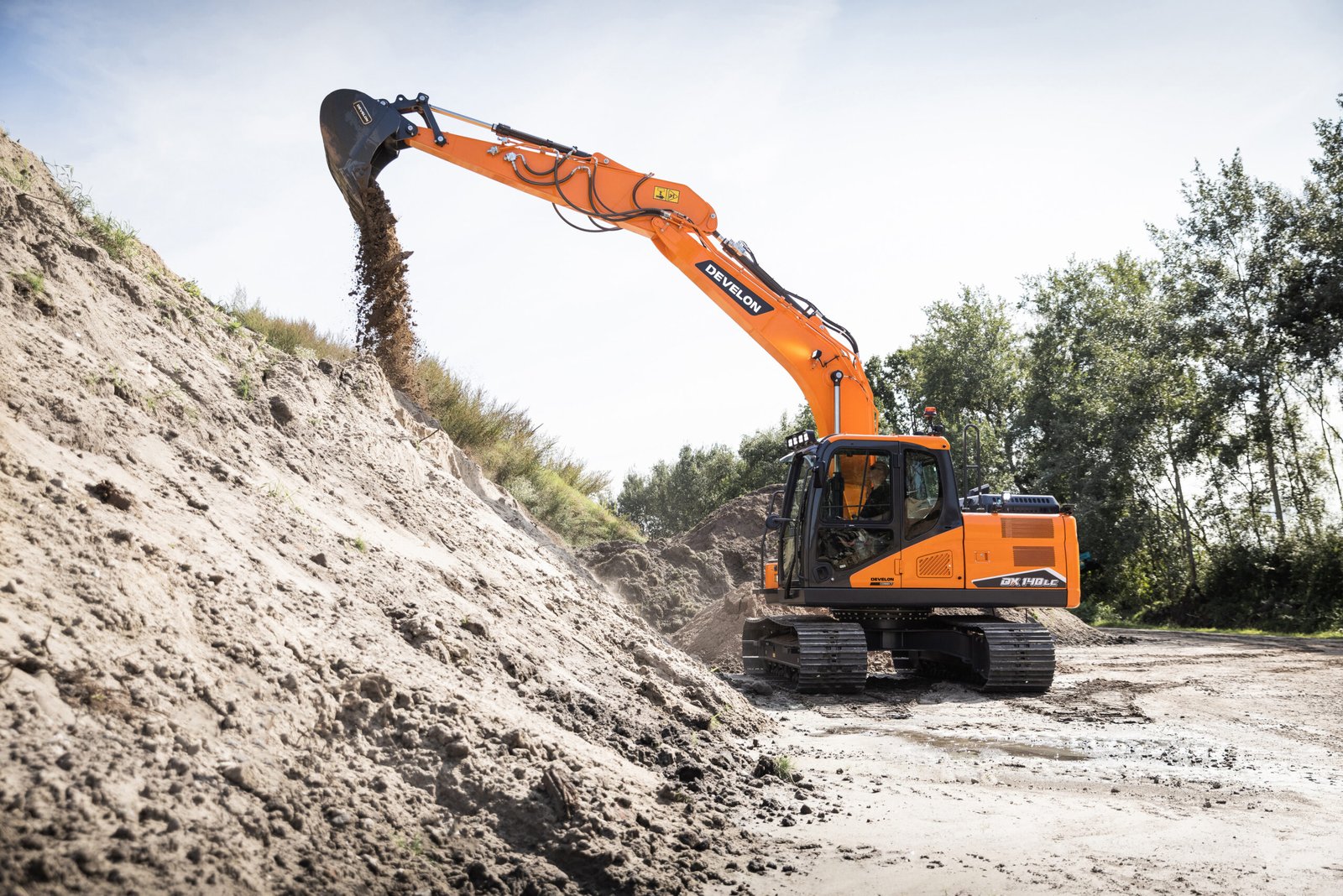

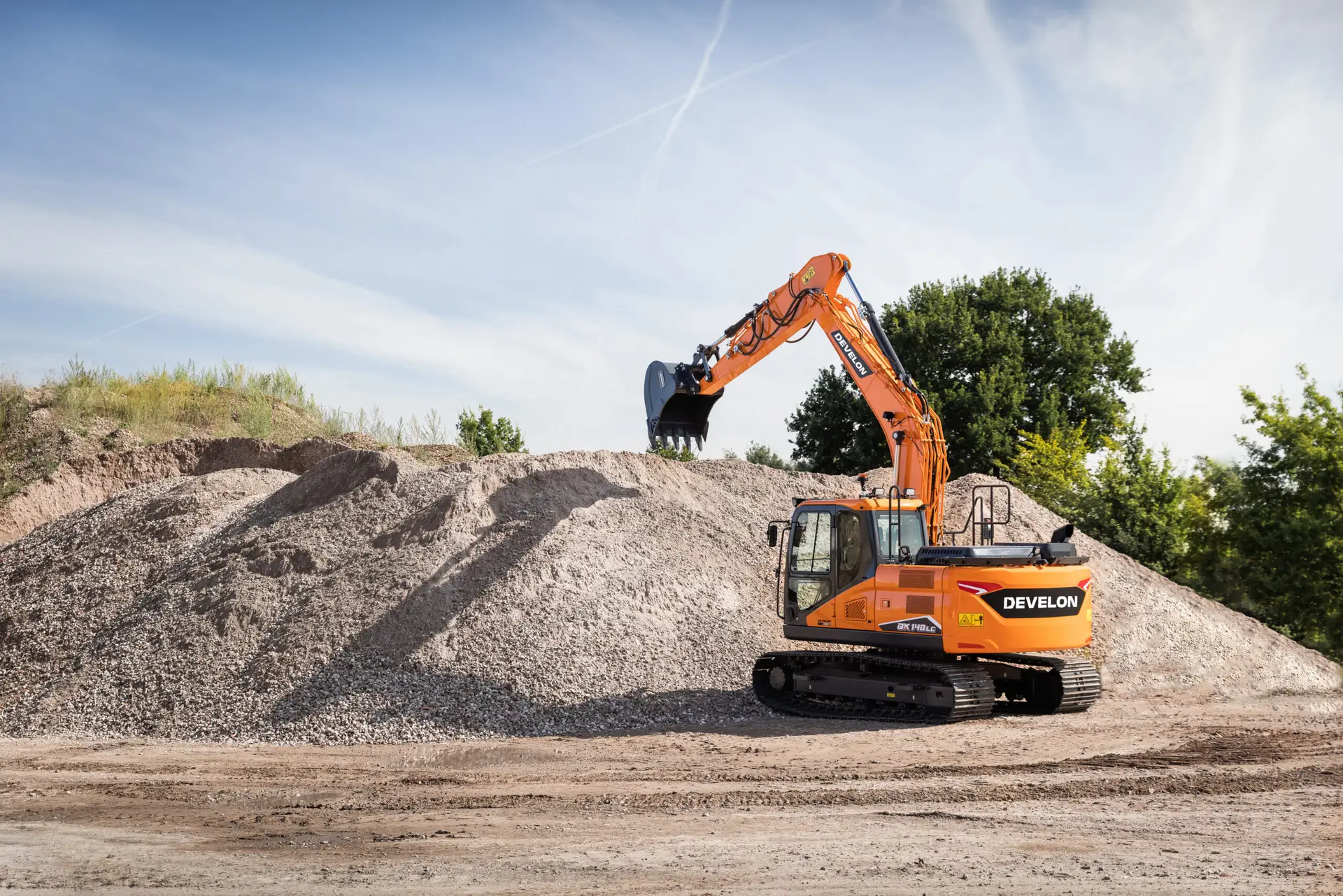

DX140LC-7K	Develon G2 D34	14400	86 kW (115 hp) @ 2000 rpm	0.51	2 × 114
DX140LC-7	Develon G2 D34	14400	86 kW (115 hp) @ 1800 rpm	0.51	2 × 114

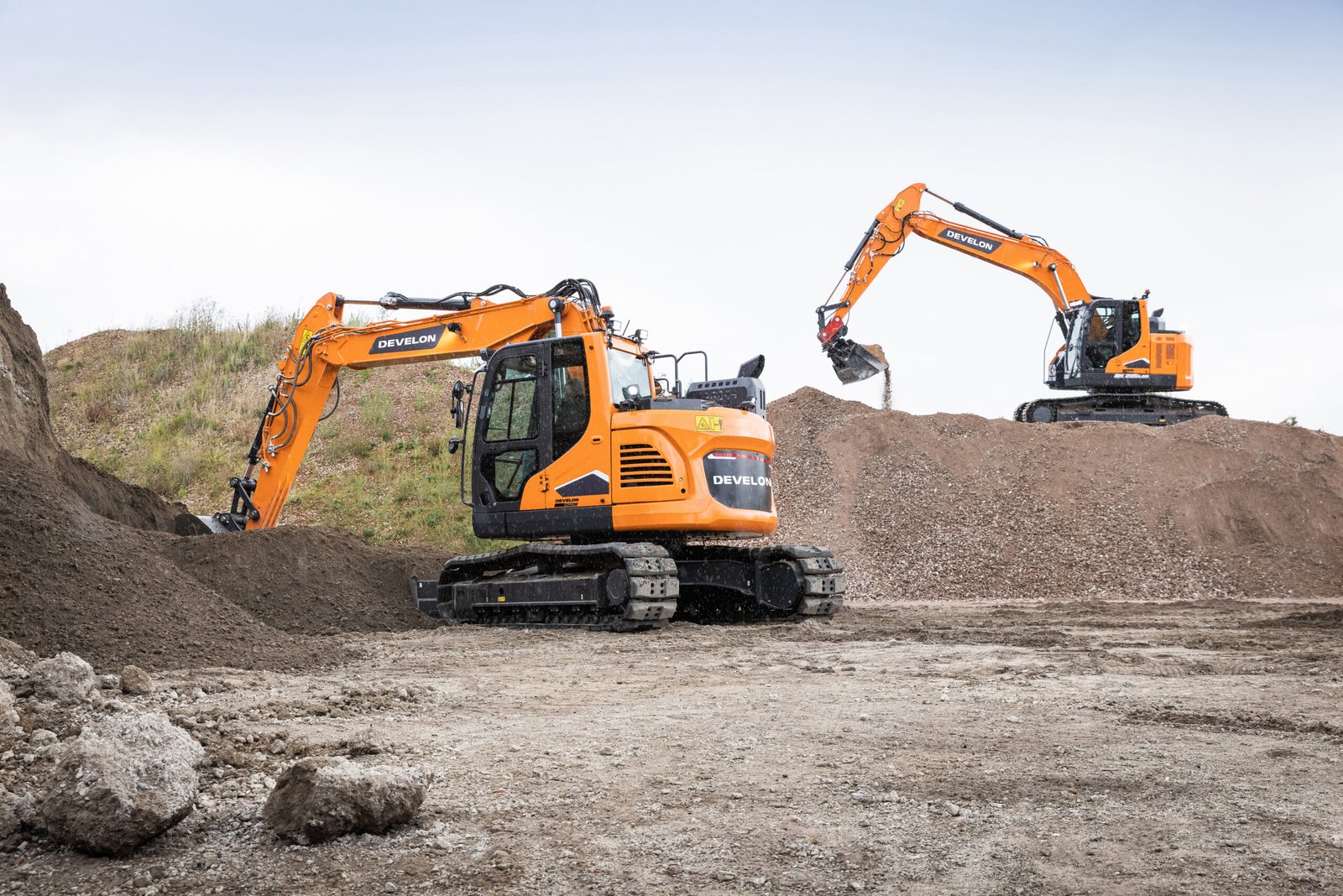

DX140LCR-7	Develon G2 D34	15600	86 kW (115 hp) @ 2000 rpm	0.51	2 × 114
DX160LC-7HT	Develon D34 G2	16800	86 kW (115 hp) @ 2000 rpm	0.50–0.75	2 × 114
DX210-7	Develon DL06V	21900	124 kW (166 hp) @ 1800 rpm	0.51–1.32	2 × 210.6
DX210LC-7	Develon DL06V	22300	124 kW (166 hp) @ 1800 rpm	0.51–1.32	2 × 210.6
DX210NLC-7	Develon DL06V	22100	124 kW (166 hp) @ 1800 rpm	0.51–1.32	2 × 210.6

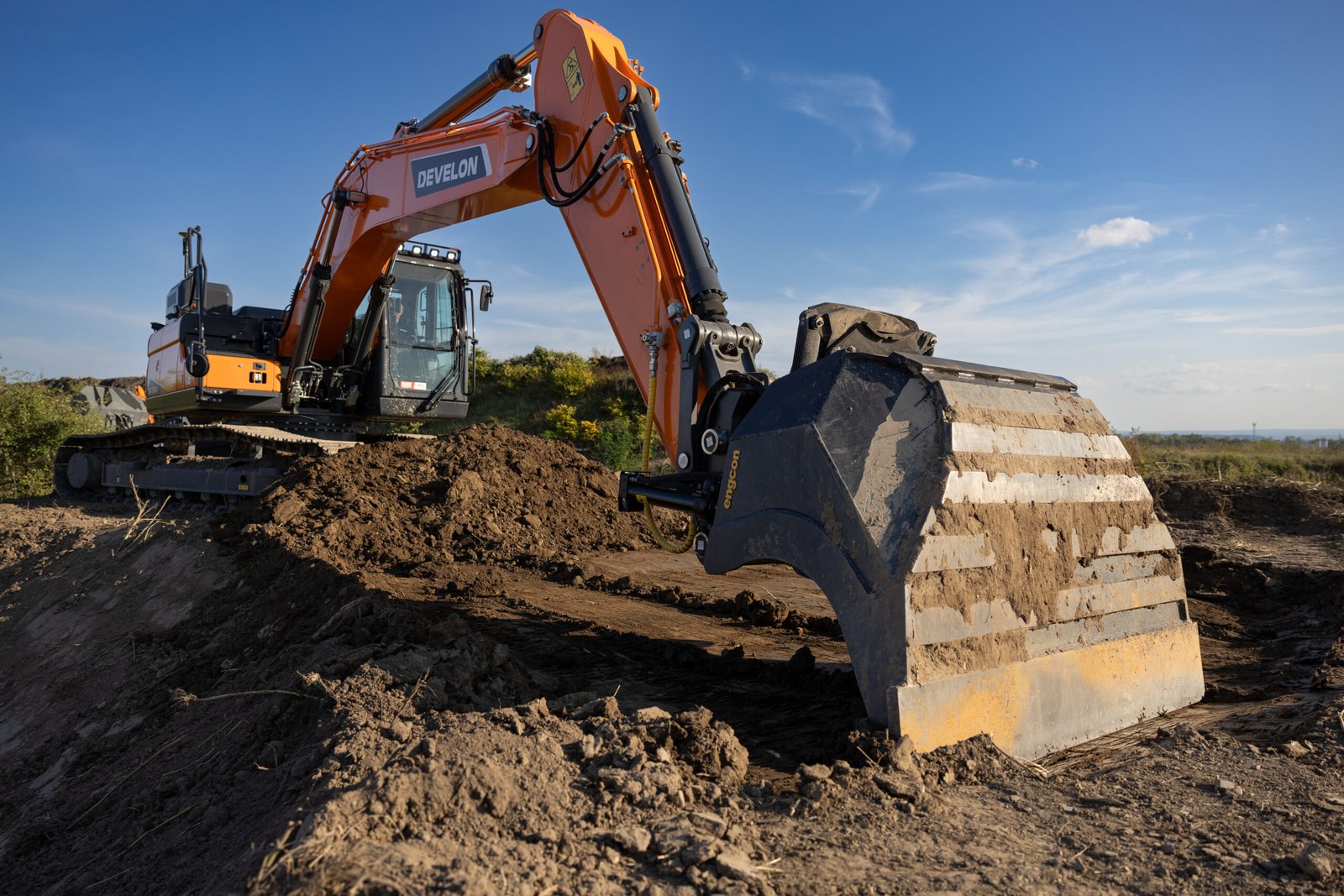

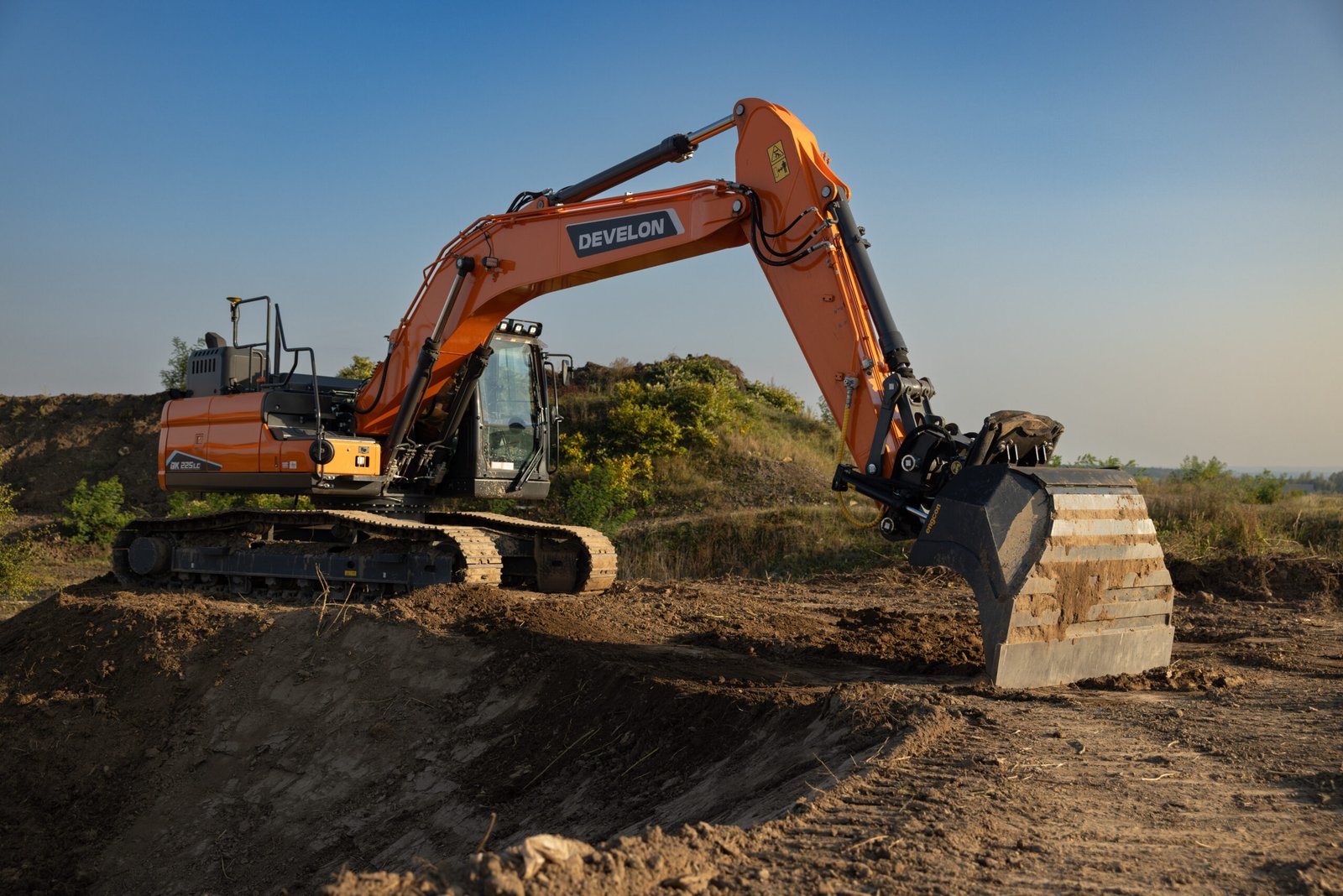

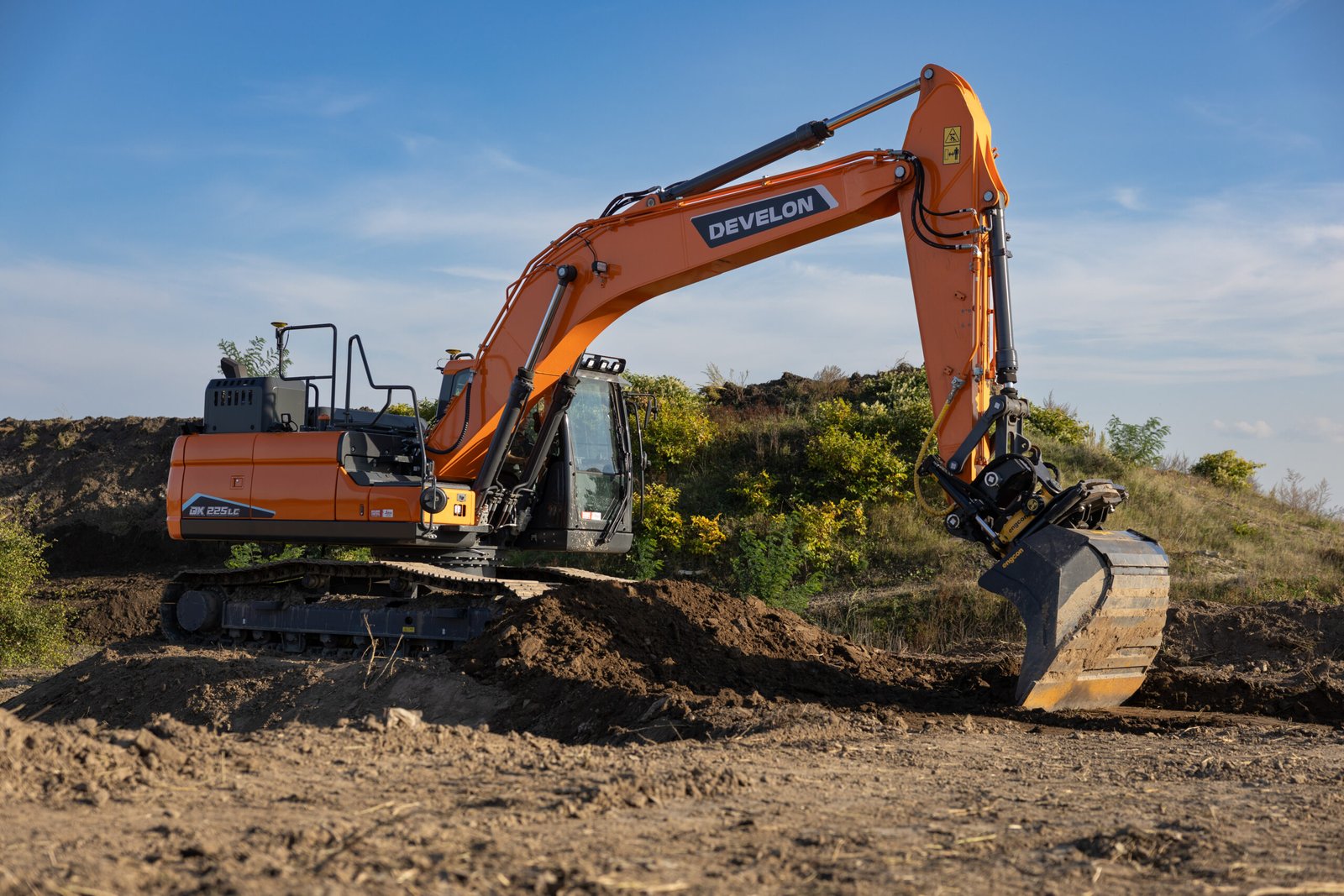

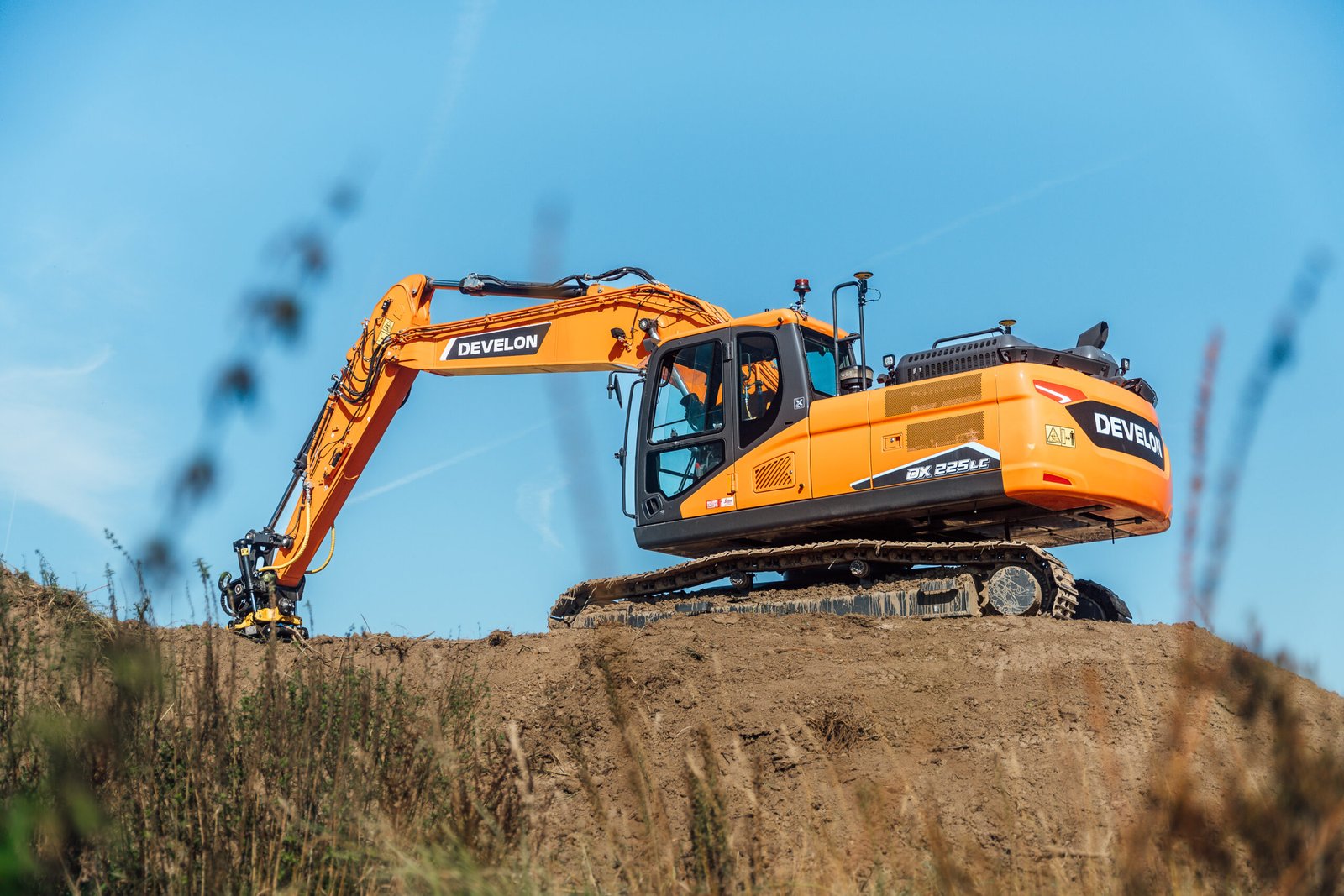

DX225LC-7	Develon DL06V	23300	129 kW (174 hp) @ 1800 rpm	1.28	2 × 210.6
DX225LC-7X	Develon DL06V	23300	129 kW (174 hp) @ 1800 rpm	1.28	2 × 210.6
DX225LC-7 SLR	Develon DL06V	24600	129 kW (174 hp) @ 1800 rpm (SAE J1995)	0.39	2 × 210.6
DX230LC-9	Develon DX05V	23600	141 kW (189.1 hp)	1.20	2 × 212
DX230LCE-7	Liquid-cooled permanent-magnet motor	25600	120 kW	0.81–1.05	2 × 210.6
DX235LC-7	Develon DL06V	23200	129 kW (173 hp) @ 1800 rpm	1.30	2 × 210.6
DX235LCR-7	Develon DL06V	24300	141 kW (189 hp) @ 1900 rpm	0.92	2 × 222.3
DX245NHD-7	Develon DL06V	25100	129 kW (173 hp) @ 1800 rpm	1.30	2 × 210.6
DX250LCE-7	Liquid-cooled permanent-magnet motor	27900	120 kW	0.81–1.05	2 × 210.6

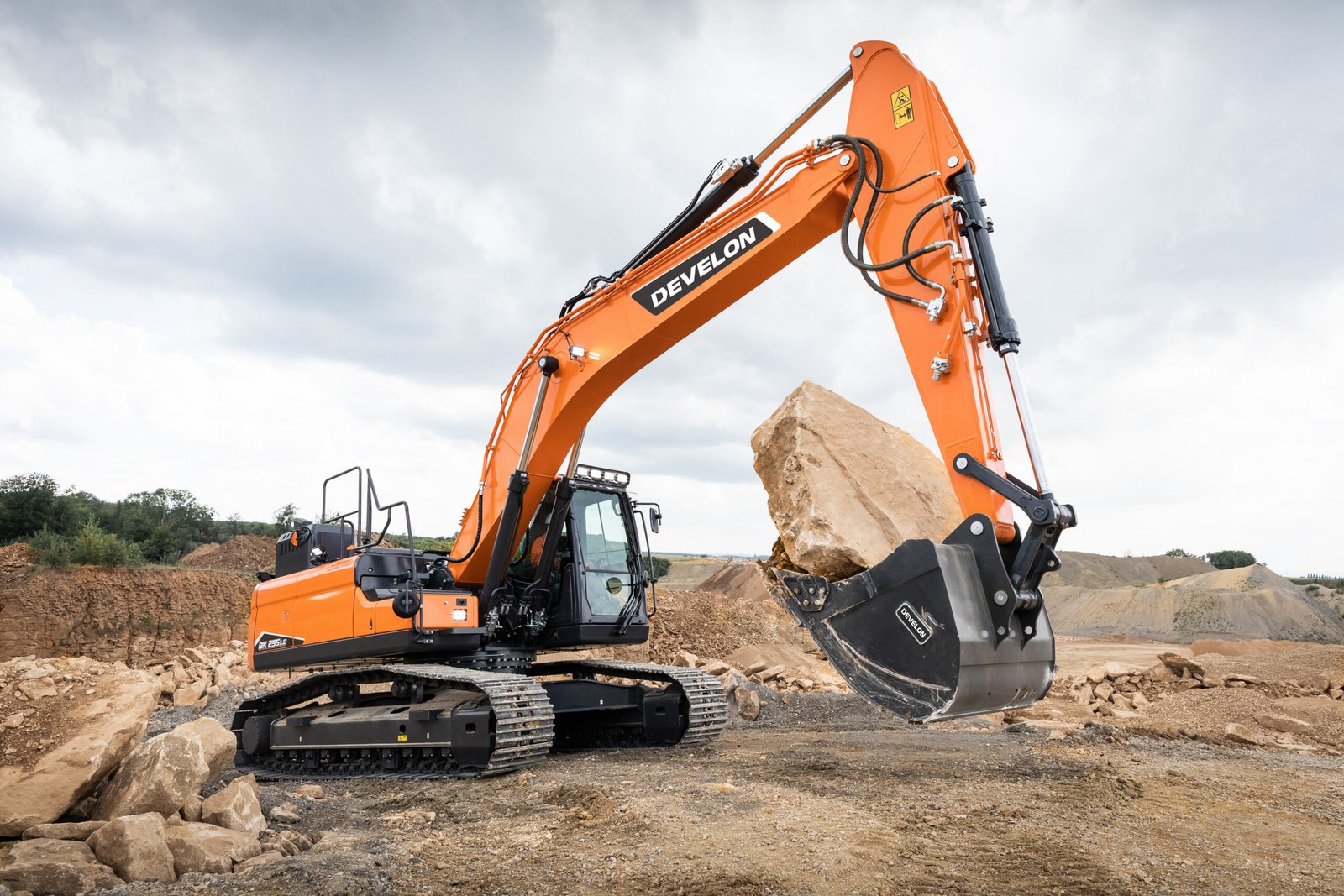

DX255LC-7	Develon DL06V	25700	141.3 kW (189 hp) @ 1900 rpm	0.92–1.17	2 × 210.6
DX260LC-9	Develon DX05V	26300	171.1 kW (229.4 hp)	1.40	2 × 237.5

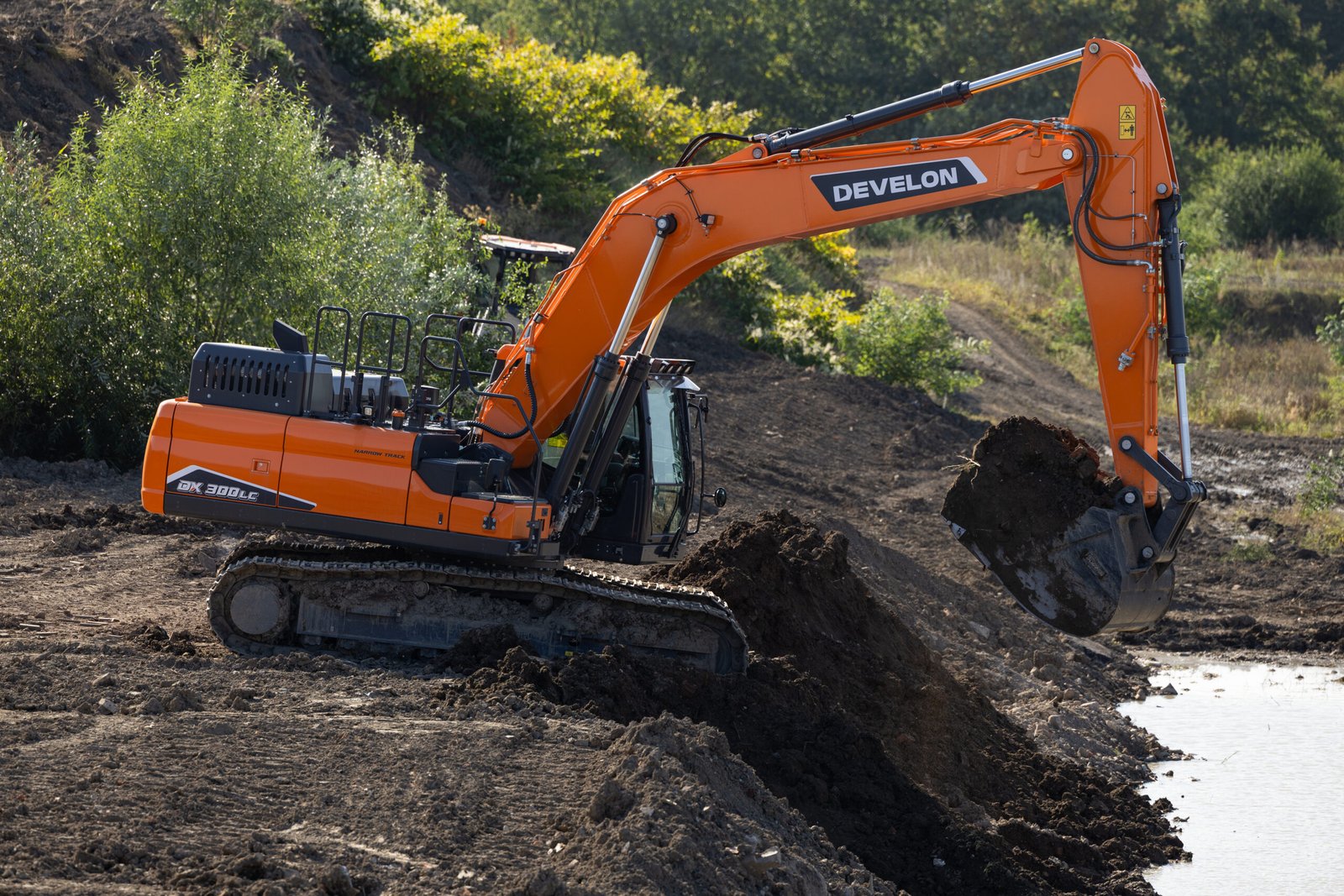

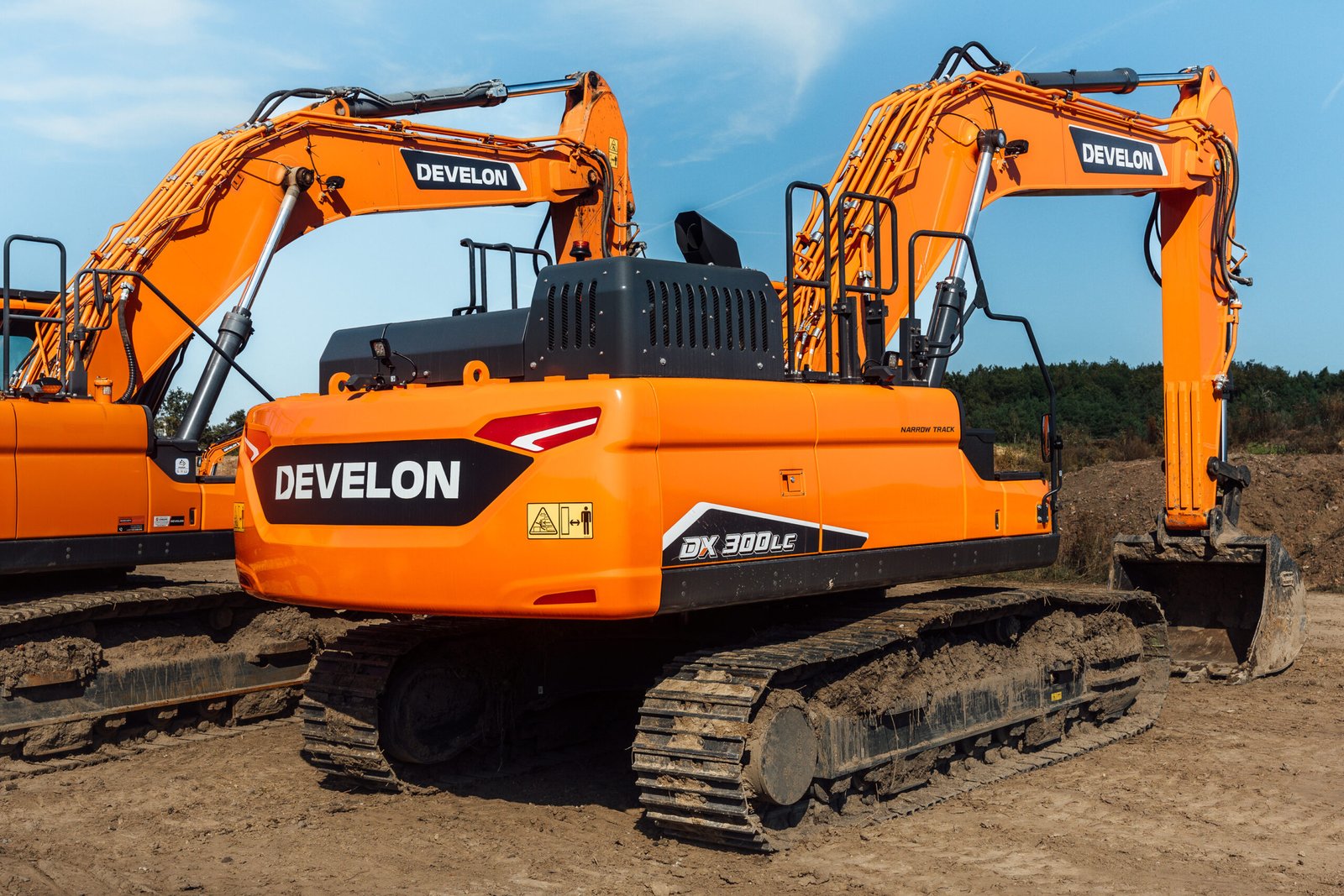

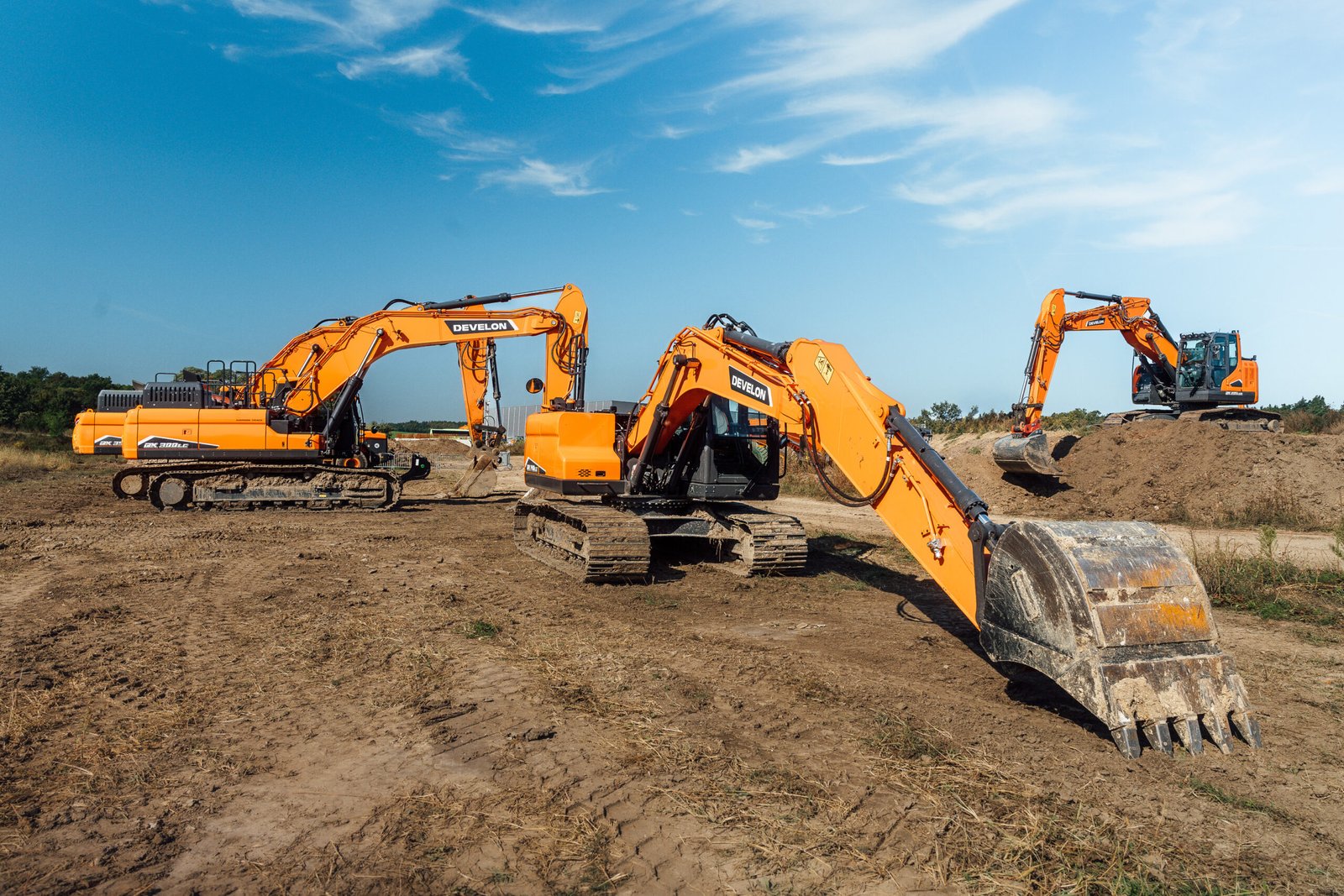

DX300LC-7K	DL08V	31500	202 kW (271 hp) @ 1800 rpm (SAE J1995)	0.80–1.75	2 × 248
DX300LC-7 SLR	DL08V	33000	202 kW (271 hp) @ 1800 rpm (SAE J1995)	0.64	2 × 248

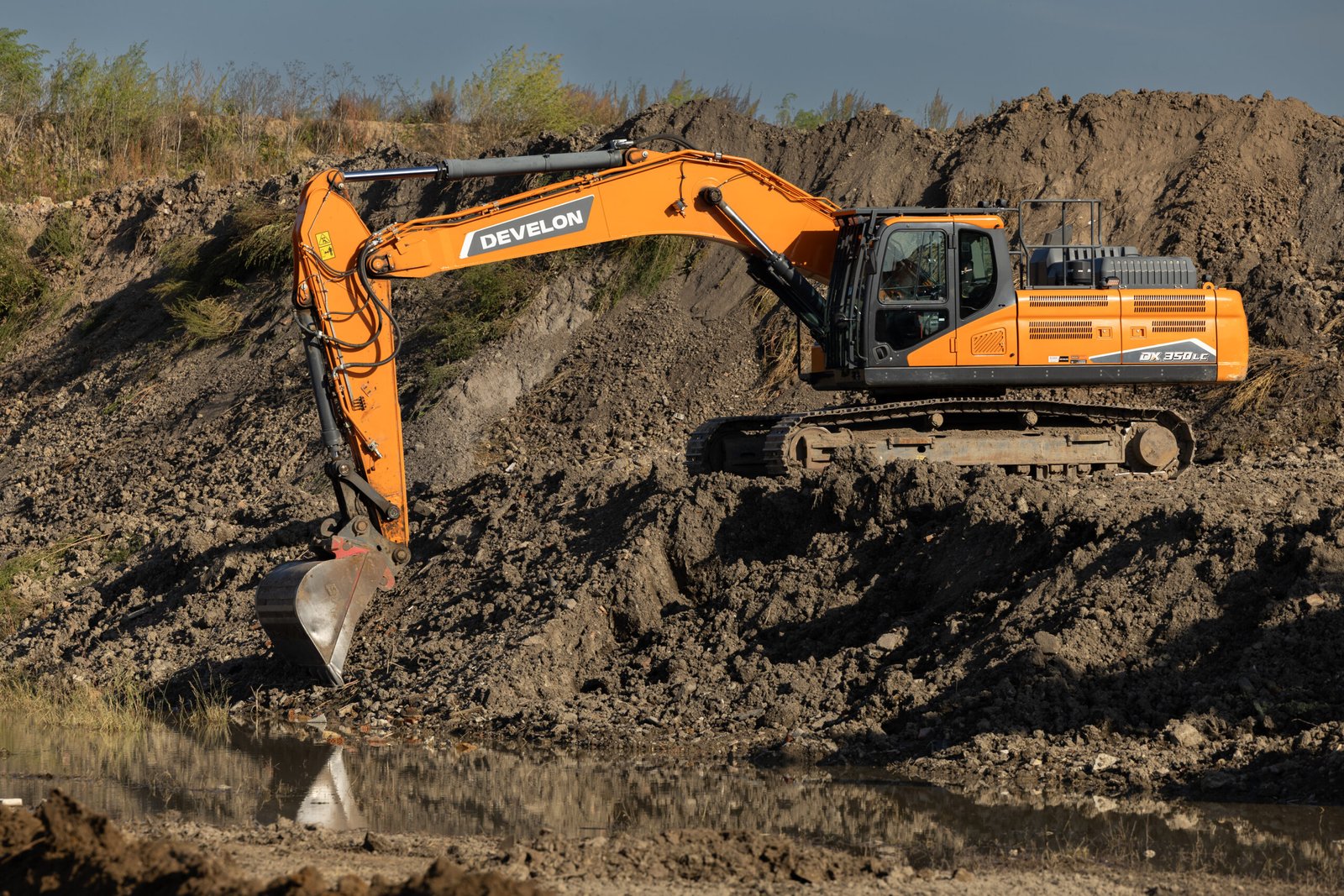

DX350LC-7K	DL08V	36100	213 kW (290 hp) @ 1800 rpm (SAE J1995)	1.25–2.32	2 × 350
DX360LC-9	Develon DX08	37200	224 kW (300.4 hp)	2.03 / 1.81 (long arm)	2 × 360
DX380LC-7K	Scania DC09	40200	240 kW (326 hp) @ 1800 rpm (SAE J1995)	1.25–2.32	2 × 350
DX400HD-9	Develon DX08	42200 / 41700 (long arm)	251 kW (336.6 hp)	2.22 / 1.81 (long arm)	2 × 360
DX420LC-7K	Scania DC13	43500	257 kW (344 hp) @ 1800 rpm (SAE J1995)	1.50–2.10	2 × 333
DX490LC-7K	Scania DC13	50400	294 kW (394 hp) @ 1800 rpm (SAE J1995)	1.71–3.60	2 × 390

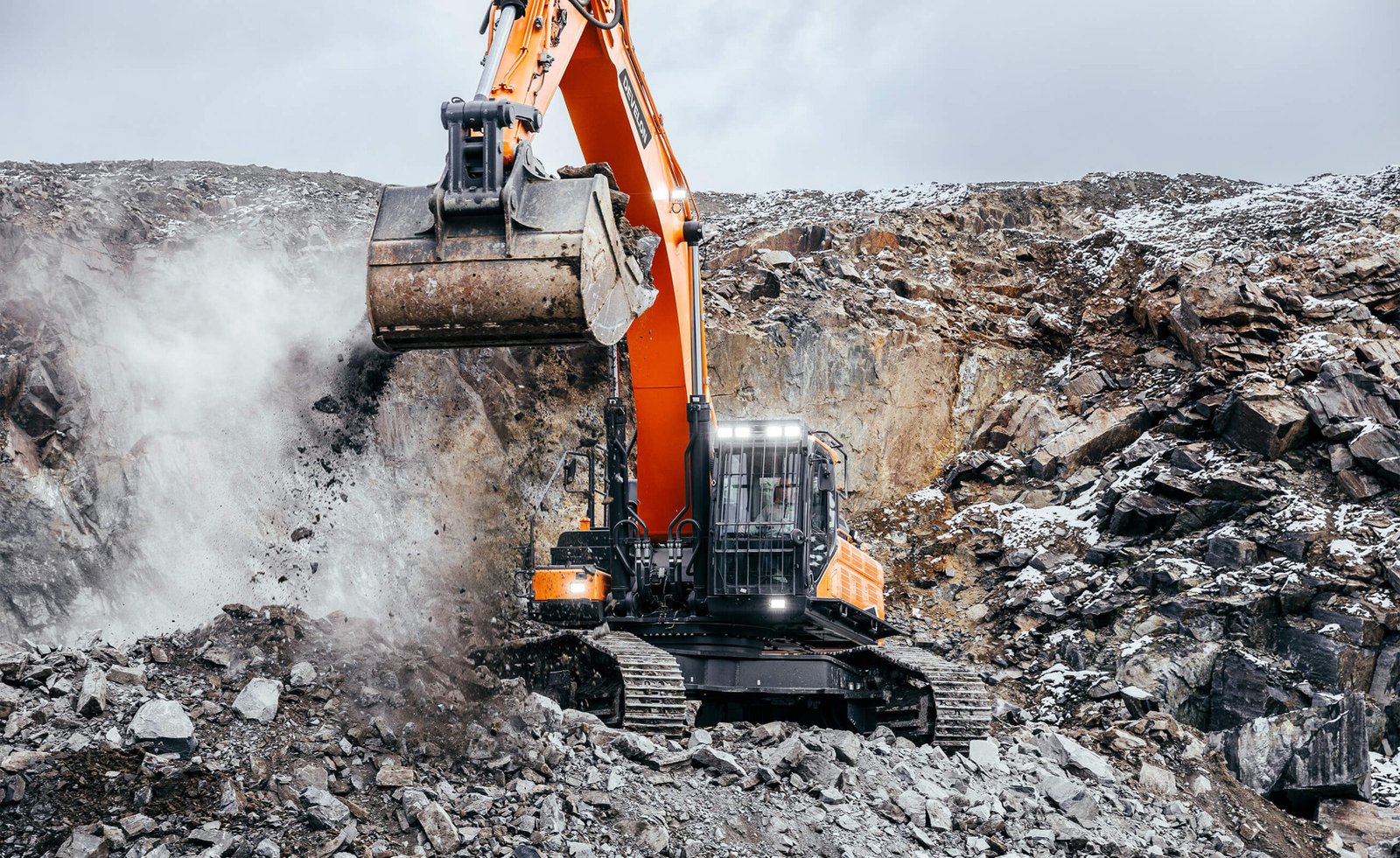

DX530LC-7K	Scania DC13	52900	294 kW (394 hp) @ 1800 rpm (SAE J1995)	1.71–3.60	2 × 390
DX530LC-7 SLR	Scania DC13	52200	294 kW (394 hp) @ 1800 rpm (SAE J1995)	0.92	2 × 390
DX800LC-7	Perkins 2506J	79500	403 kW (548 hp) @ 1800 rpm (SAE J1995)	4.25–5.24	2 × 504

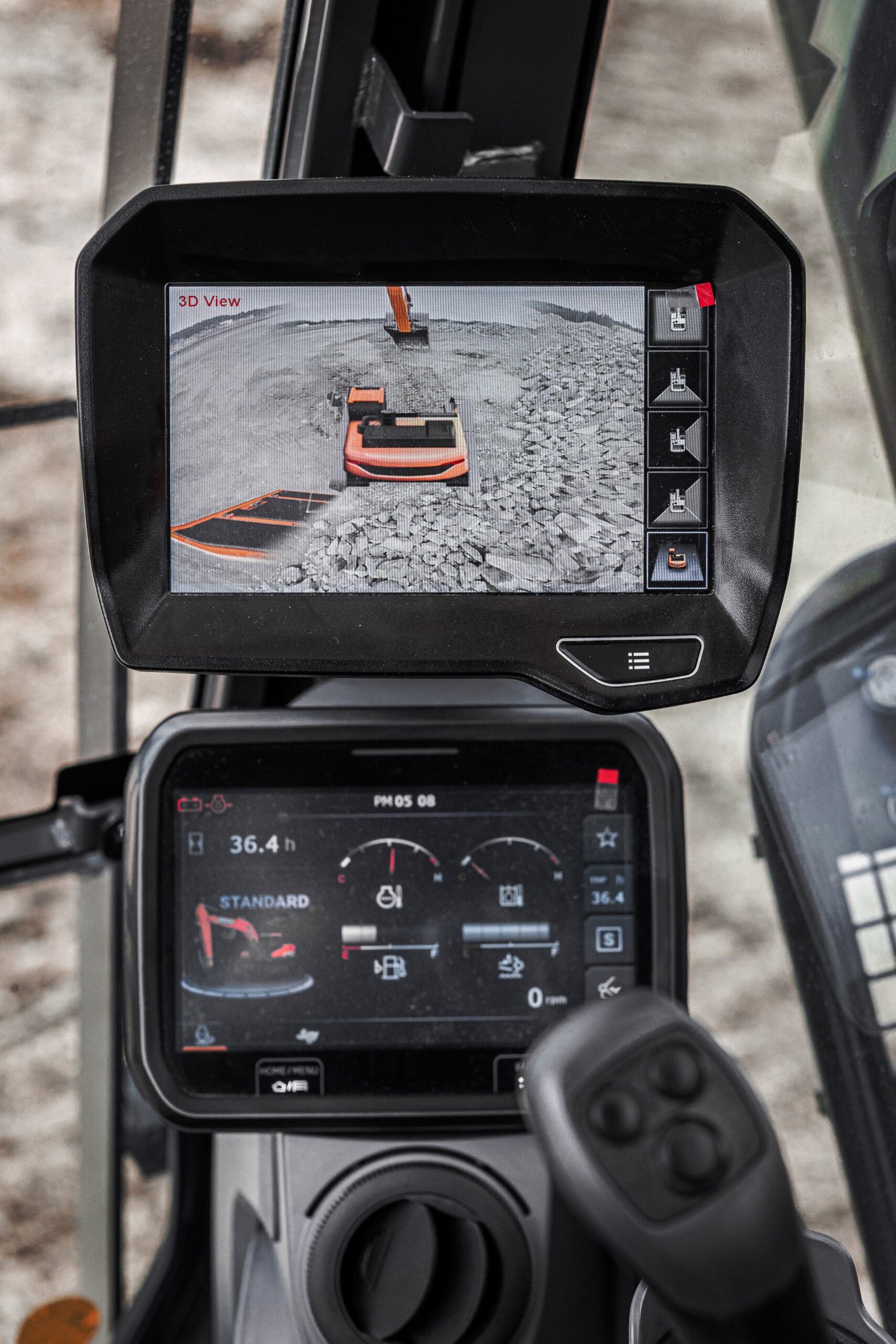

DX1000LC-7	Perkins 2806	97000–99500	469 kW (629 hp) @ 2000 rpm	5.40–6.80	3 × 523
