| Model | Operating weight (kg) | Width (mm) | Max. digging depth, standard / long arm (mm) | Engine | Engine power and speed | Max. reach at ground level, standard / long arm (mm) |
|---|---|---|---|---|---|---|
| DX10Z-7 | 1165 | 730 / 1100 | 2205 | Kubota D722 | 7.6 kW (10.35 hp) @ 2050 rpm | 3355 |
| DX17Z-7 | 1850 | 994 (1290) | 2240 / 2440 | Kubota D902 | 12.1 kW (16.5 hp) @ 2400 rpm | 3820 / 4010 |

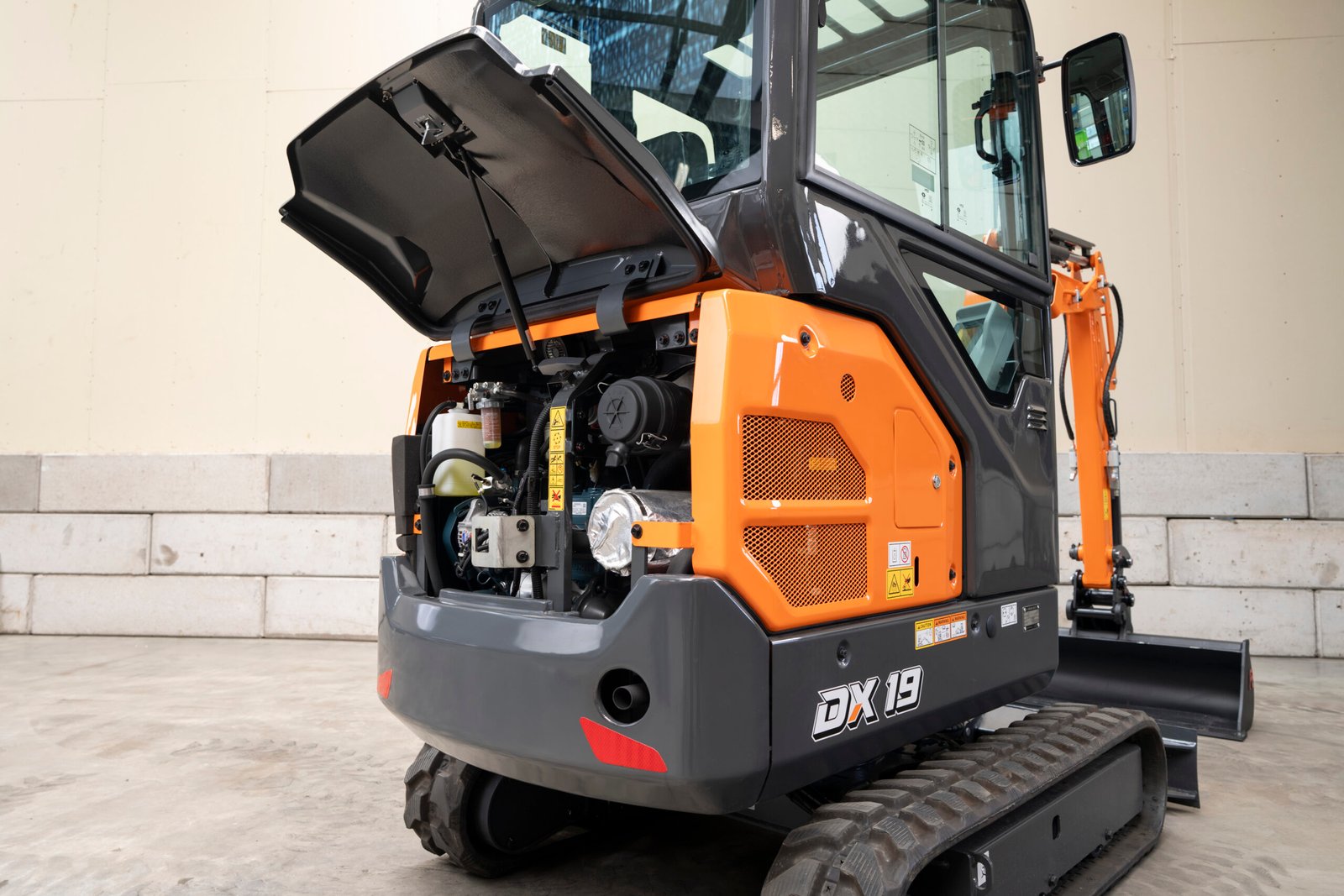

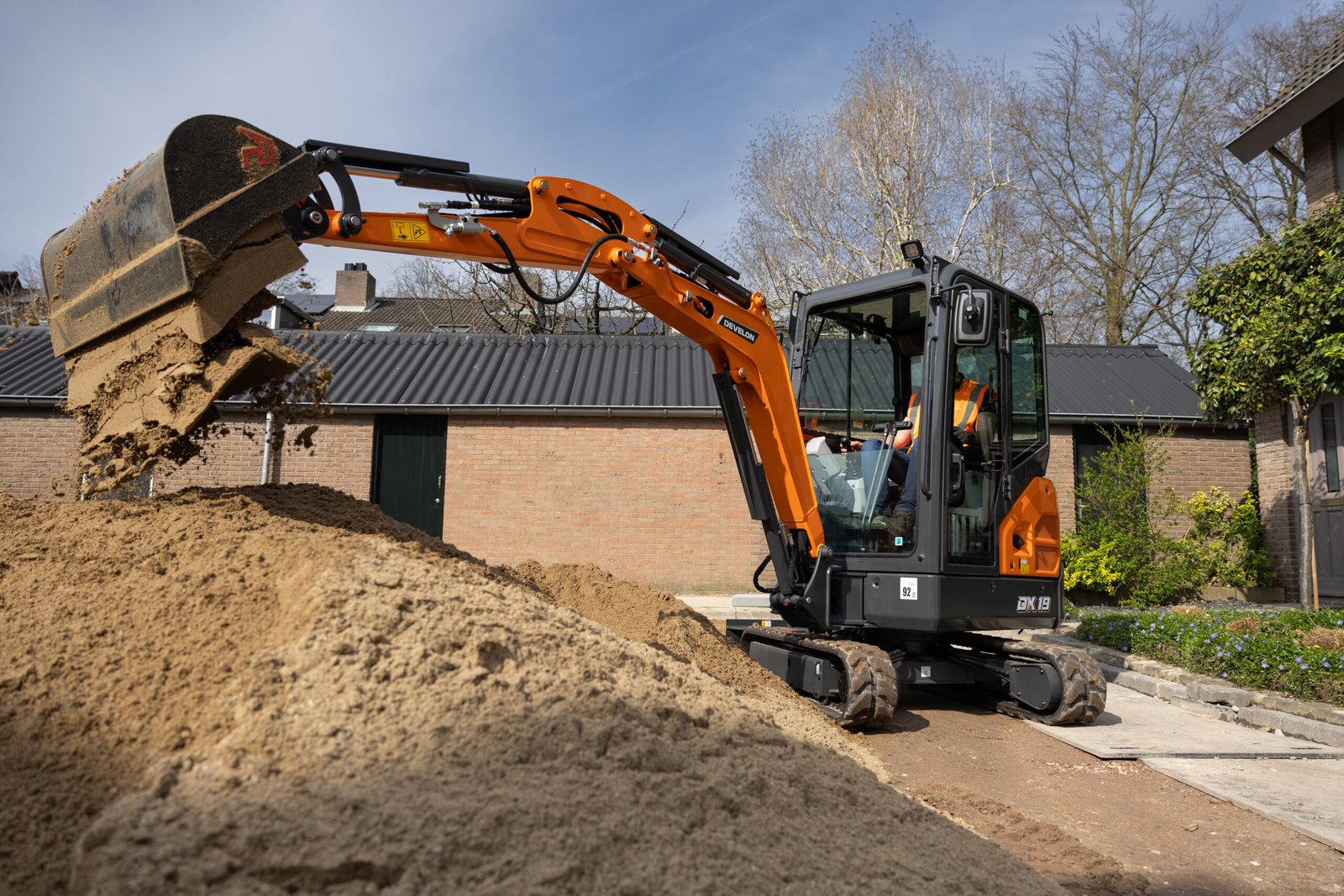

| DX19-7 | 1885 | 994 (1290) | 2340 / 2540 | Kubota D902 | 12.1 kW (16.5 hp) @ 2400 rpm | 3850 / 4040 |

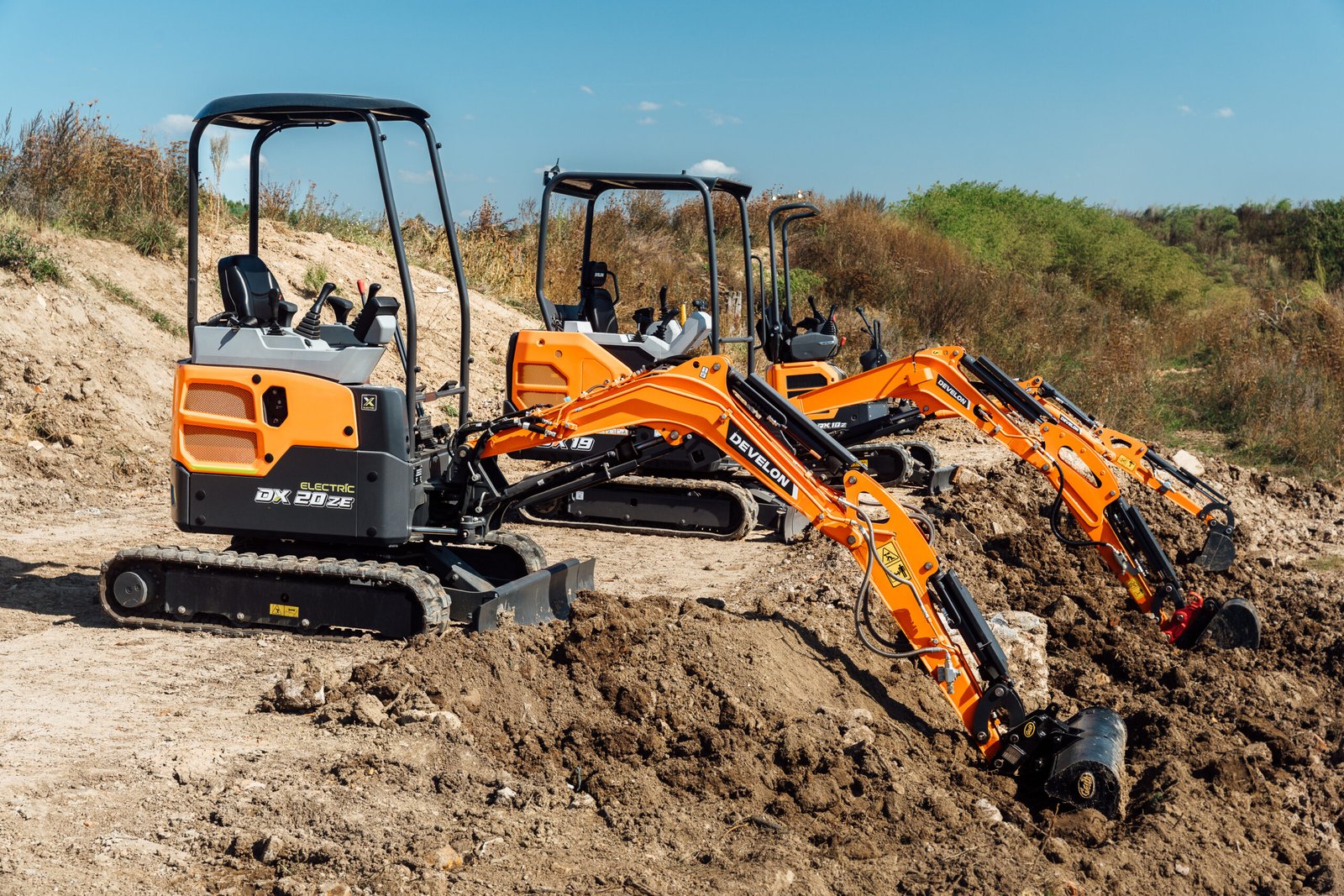

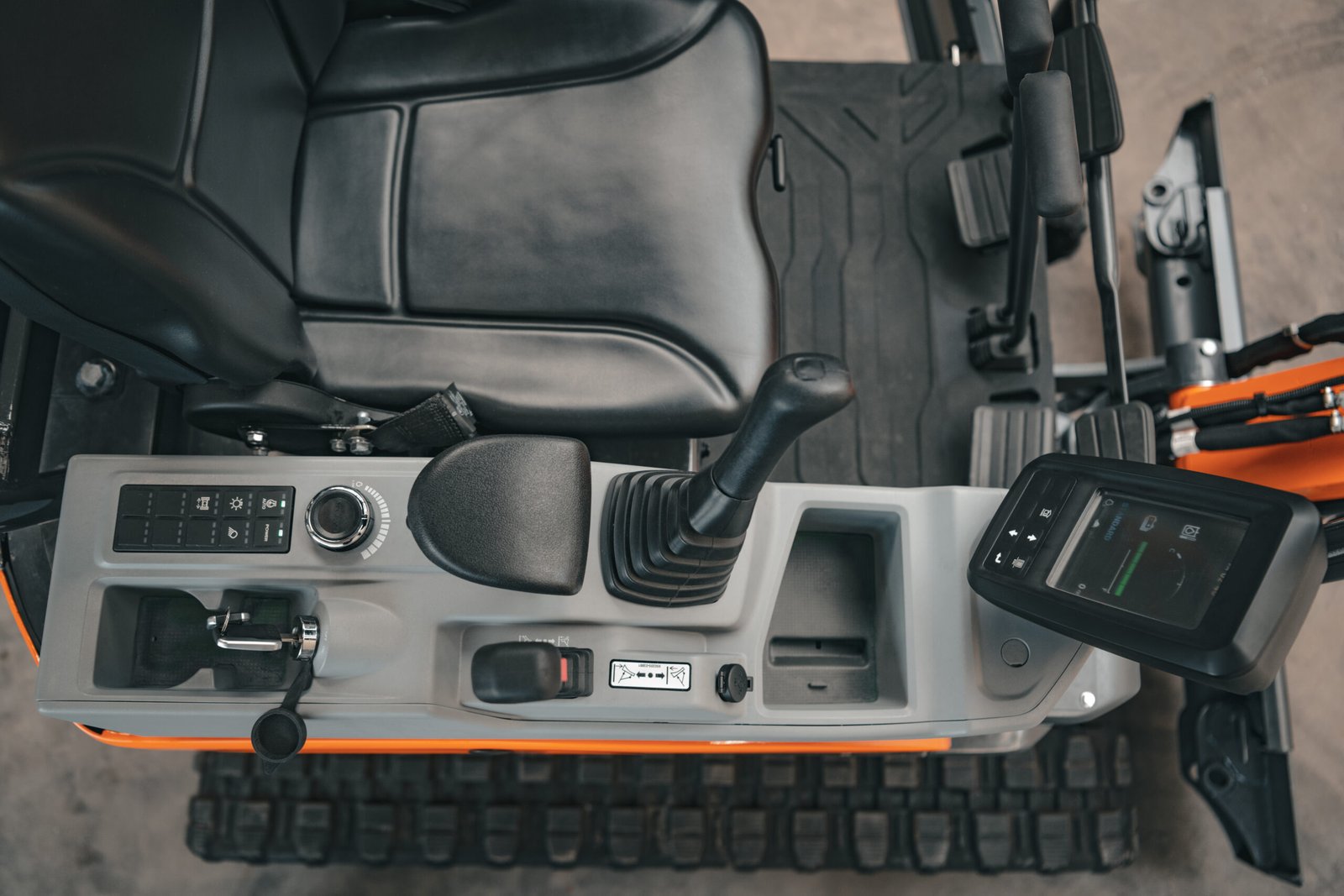

| DX20ZE-7 | 1941 | 950 (1360) | 2200 | Electric motor | Not specified | 3725 |
| DX20Z-7 | 1995 | 950 (1360) | 2345 | Yanmar 3TNV70 | 10.3 kW (13.8 hp) @ 2200 rpm | 3875 |
| DX23E-7 | 2296 | 994 | 2540 | Electric motor | Not specified | — |

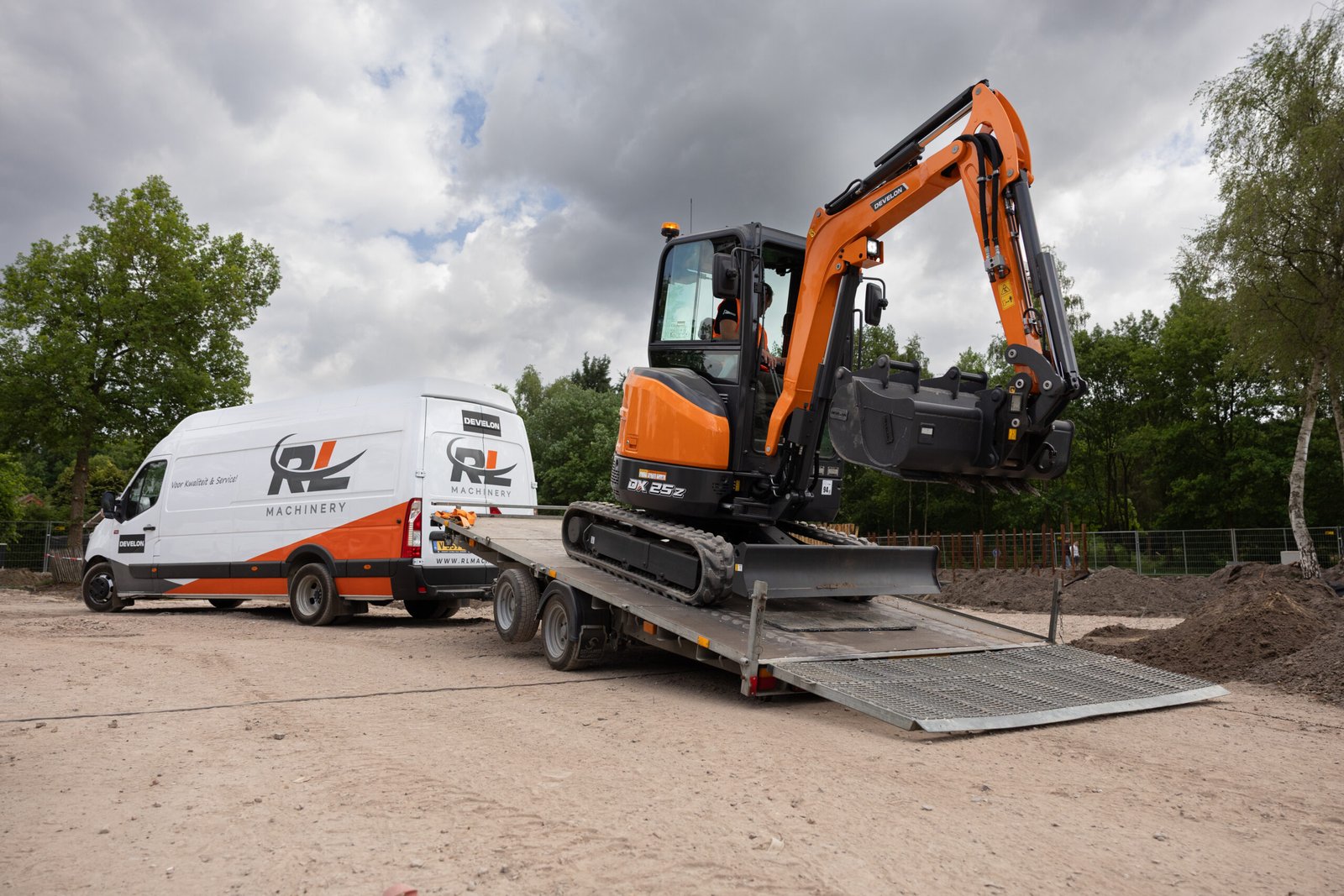

| DX25Z-7 | 2691 | 1550 | 2695 | Kubota D1305 | 18.5 kW (24.8 hp) | 4600 |
| DX27Z-7 | 2730 | 1550 | 2645 / 2845 | Kubota V1505 | 18.5 kW (25 hp) @ 2300 rpm | 4520 / 4720 |
| DX35Z-7 | 3995 | 1700 | 3275 / 3445 | Develon D17 | 18.4 kW (25 hp) @ 2200 rpm | 5235 / 5400 |
| DX35Z-7K | 4040 | 1700 | 3275 / 3445 | Develon DW01 | 18.4 kW (25 hp) @ 2200 rpm | 5235 / 5400 |
| DX50Z-7 | 5438 | 1980 | 3480 | Develon D18 | 36.4 kW (48.8 hp) @ 2200 rpm | 5800 |
| DX55R-7 | 5740 | 1980 | 3630 / 3930 | Develon D18 | 36.4 kW (48.8 hp) @ 2200 rpm | 5950 / 6250 |
| DX57W-7 | 5800 | 2290 | 3495 / 3795 | Develon D24 (SAE J1349) | 42.5 kW (57 hp) @ 2400 rpm | 5888 / 6190 |
| DX62R-7 | 6216 | 2050 | 3795 / 4095 | Develon D24 | 44.3 kW (65 hp) @ 2300 rpm | 6175 / 6485 |

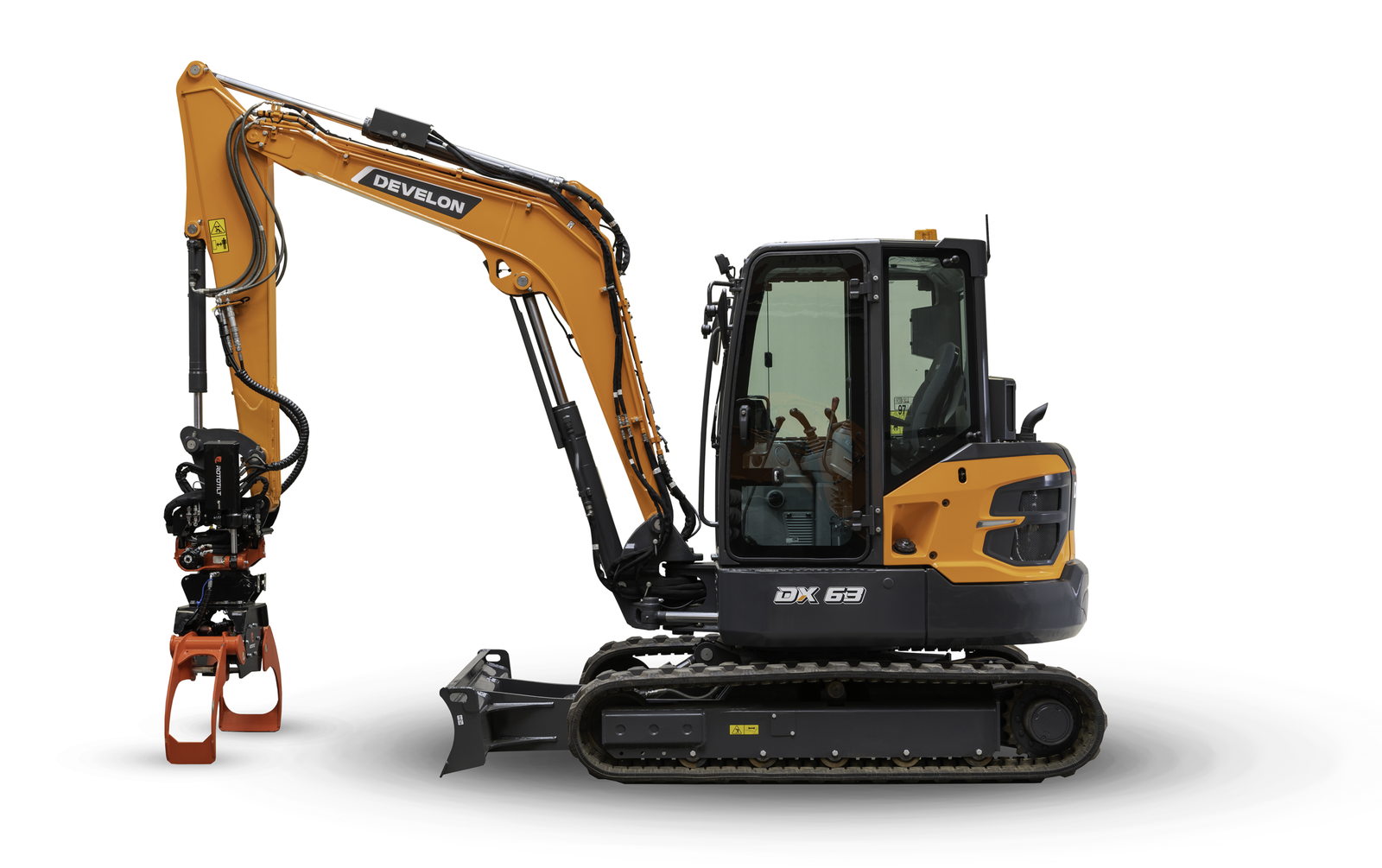

| DX63-7 | 6218 | 1980 | 3795 / 4095 | Develon D24 | 44.3 kW (65 hp) @ 2300 rpm | 6005 / 6315 |
| DX85R-7 | 9528 | 2250 | 4110 / 4670 | Develon D24 | 48.5 kW (65 hp) @ 2100 rpm | 6850 / 7380 |
